Overview

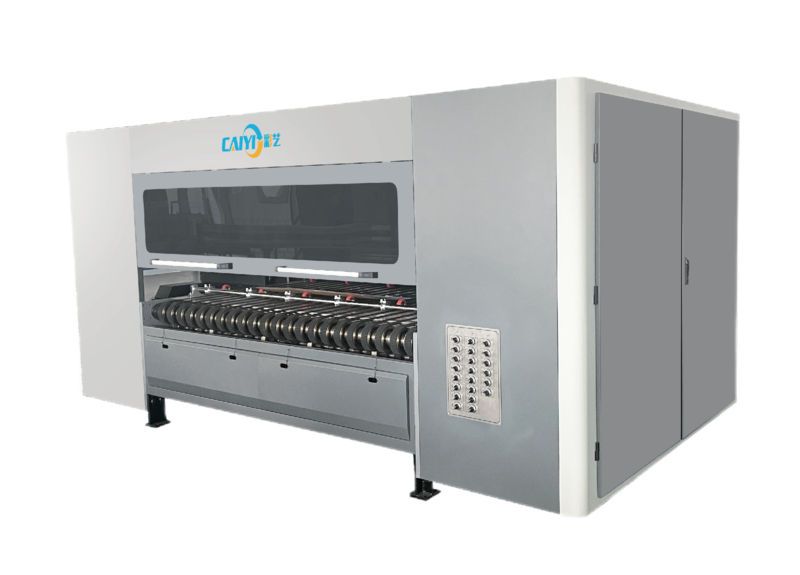

Inways Corrugated Board Digital Inkjet Printer / digital carton printer / carton board digital printer / is specially designed for corrugated board. It adopts digital print heads.   Easy printing can be realized through software operation; Very suitable for personalized, high value-added small batch orders

Environmentally friendly:

Inways digital corrugated box printer adpots a fully enclose automatic ink refilling system, which can refill inks on demand, automatically adjust color tones, and does not require machine washing, thereby avoiding the waste water pollution of vonventional printing presses due to debugging and plate washing.

Intelligent

The product realizes full computer control, does not require professional printing technicians, improves production efficiency and saves production costs.

Wide Format

The single-sheet printing area has a width of up to 2.6 meters, and the length is unlimited, breaking through the limitation of conventional printing width.

Fast order switch

At present, the personalization of cartons is gradually increasing, and there are more and more short-run orders, which has caused many difficulties for manufacturers. The plateless digital printing machine can print when it is turned on. It has great advantages for quick sampling, small batch replenishment and urgent order production, and it can be used for "one piece order printed immediately" and "soon ready while waiting".

High Resolution

Using digital control technology, the full-color printing resolution far exceeds the resolution of conventional ink printing, making the printed picture more delicate and lifelike.

save space

Small footprint, about a quarter of that of conventional printing presses.

Features

• Water-based ink is environmental friendly and safe;

• Vacuum-suction lead edge servo automatic feeding system, automatic baffle adjustment, convey belt adsorption servo precise feeding;

• The feeding and the height of the print heads are automatically detected and adjusted by laser;

• The printing width is 2600mm, 20mm~9000mm long, and the resolution is morethan 600 dpi

Ink supply system

• No need plate making and washing, CMYK four primary color spray printing mode is adopted, and multi-color printing is automatically generated through computer software editing, which is convenient, fast, low-carbon and environmentally friendly. The actual ink consumption of small batch production is only 1 / 10 of that of traditional printing machine, and the cost is 0.15 RMB / m².

• The maintenance and installation of the printhead is convenient, and the adjustment is simple. The system adjusts the setting parameters to achieve the purpose of quick order change.

• Intelligent cleaning mode of printhead, automatic cleaning, no need to adjust frequently, more ink saving, more stable.

• Automatic industrial ink supply system, visible sub ink cartridge, more stable ink, better effect.

• Epson3200 printhead is adopted, which is economical and reliable with low maintenance cost.

Mechanical transmission control system:

• The whole machine adopts Japanese Mitsubishi PLC servo control system, which has high reliability, strong anti-interference ability and good human-computer interaction.

• Using Mitsubishi servo motor with larger torque and high precision cycloid pin gear reducer, it has high precision, fast speed and stable performance.

• Adopts servo lead edge feeder, accurate and stable, high repeat positioning accuracy, multi row wheel structure, with stronger adsorption force.

• Adopts baffle multi positioning, can be suitable for a variety of cardboard positioning at the same time, reducing the adjustment time;

• The fan is adjusted by Mitsubishi frequency converter, the air volume is flexible and reliable, more energy saving.

• Adopt multi channel independent suction belt, paperboard feeding is more accurate.

• The laser sensor is used to automatically distinguish the problems of multiple sheets, board warpage and board deviation, which is more intelligent and reduces human participation.

• Suitable for various sizes of cardboard, maximum 250 * 250(mm)

Specification
